Wire Cable Skip Strander With Carbon Bow 1000 Rpm Rotating Speed

Brand Name : Beyde

Model Number : 630 1+6

Place of Origin : China

MOQ : 1 set

Payment Terms : L/C, T/T

Supply Ability : 200 set/year

Delivery Time : 90 days

Packaging Details : container

Usage : Stranding,Twisting

Color : Customized

Plc : SIEMENS

Warranty : 12 Months

Name : Stranding Machine,cable machine - Skip type stranding Machine

Wire material : steel,copper,aluminum

Function : Twist Wire

Aluminum wire : 1.6-4.0mm

Central pay off drum diameter : 630

Rotor speed : 1000rpm

Motor : SIEMENS

Motor power : 55KW

Main motor : 37

Max after stranding diameter : 40

Max line speed : 300(M/MIN)

Application : Wire Stranding

Contact Now

Skip Strander Machines Wire Cable With Carbon Bow 1000 RPM Rotating Speed

1.Application

The machine is used for stranding copper wire, aluminum wire and steel wire and wire rope,like ACSR,AAC.

2.Main technical parameter
Name Unit Data
Single wire diameter mm Copper wire Φ1.5-Φ4.5
Aluminum wire Φ1.8-Φ5.0
Steel wire Φ1.8-Φ4.0
The maximum strand diameter mm Φ16
Max rotation speed of the tube rpm 1000
Stranding pitch mm 49.3-372.7mm ( 36 stage )
Diameter of draught wheels mm Φ1200×Φ1200
Main motor power( AC variable frequency speed regulation ) kw 37
The specifications of the bobbin / d1: 630 mm
L1: 475 mm
d4: 127 mm
Take-up bobbin / PN630-PN1600

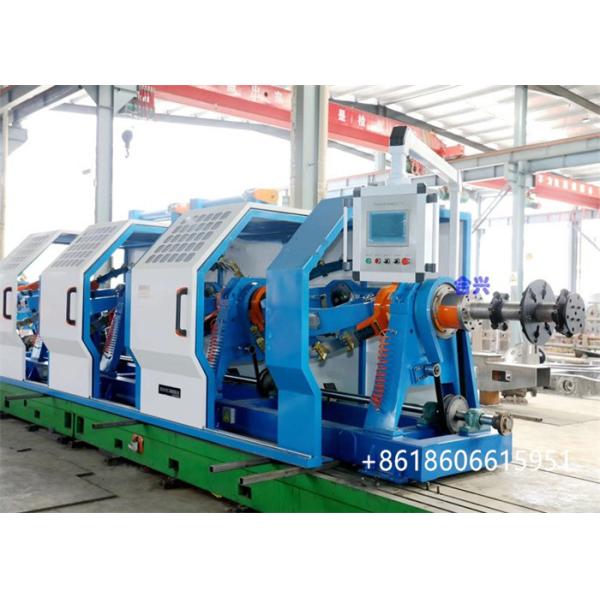

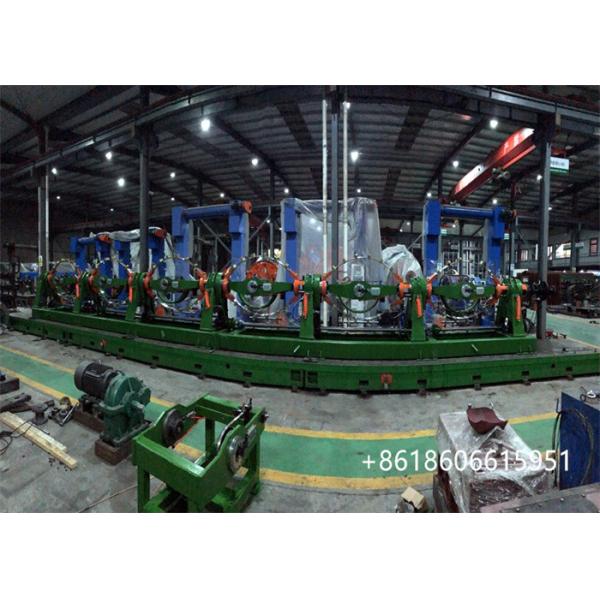

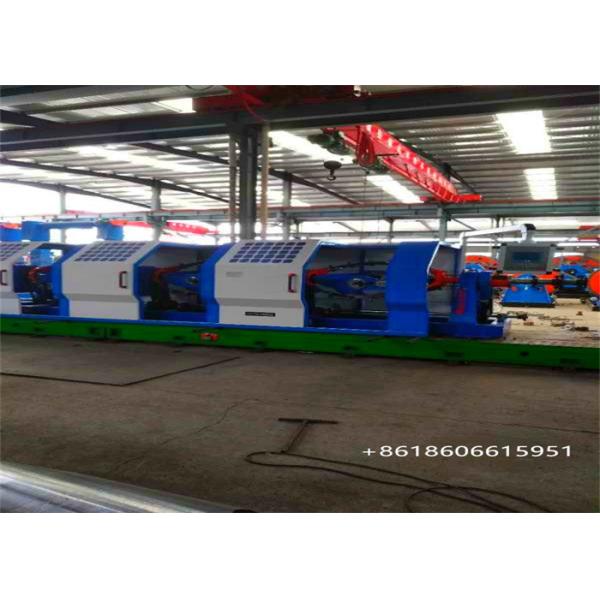

Wire Cable Skip Strander With Carbon Bow 1000 Rpm Rotating SpeedWire Cable Skip Strander With Carbon Bow 1000 Rpm Rotating SpeedWire Cable Skip Strander With Carbon Bow 1000 Rpm Rotating Speed
